Description
- Proudly Designed and Made in USA

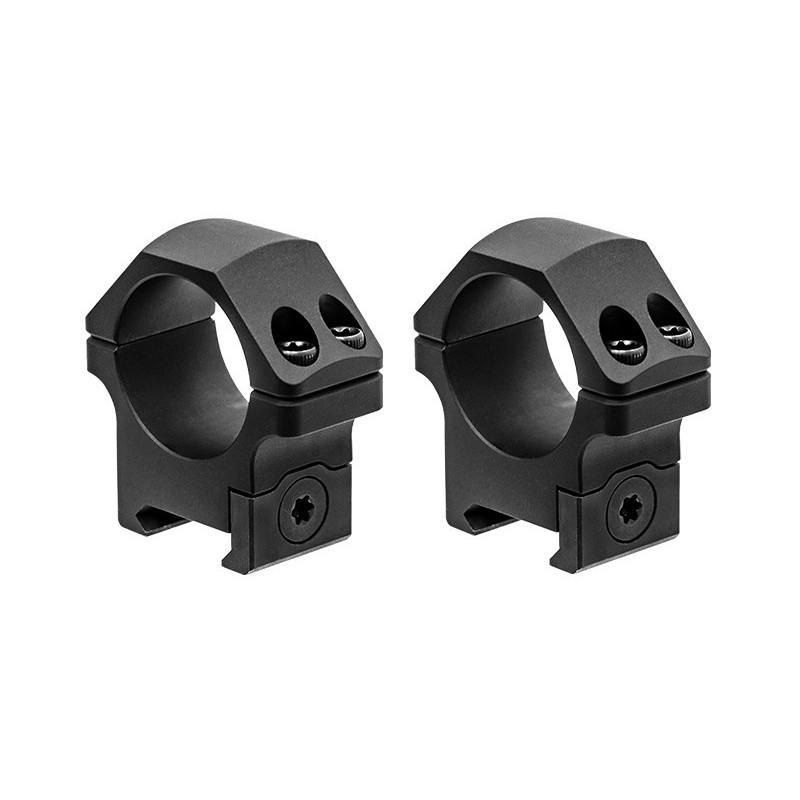

- Low Profile P.O.I Rings Have a 1.00 in or 25 mm Center Height to Fit Optics with a 34 mm Tube, for up to a 50 mm Outer Objective
- Patented P.O.I Locking Plate and Precision Optics Interface Design Features:
- Flush-Fitting Low Profile Steel Locking Side Plate Controlled by Dual Spring-Loaded Guide Rods for Easy Installation
- Square-Shaped Integral Recoil Stop for Complete Surface Contact with Picatinny Slot and Secure and Repeatable Zero Hold
- Top and Bottom Rings Precision-Machined from 1 Piece of Al for Tight Tolerance Inner Diameter and Seamless Ring-to-Scope Interaction
- 2 Piece Ring Set with 22 mm Ring Width, Torx-Locking and Equipped with 4 Top Torx Screws
- Designed to Fit on Mil-spec 1913 Picatinny Rail Platforms
- Machined from 6061-T6 Aluminum with Steel Construction and Matte Black Hardcoat Anodize
- Rated for .50 BMG
| Caliber Rating | .50 BMG |
|---|---|
| Color(s) | Black |
| Height Profile | Low |
| Locking Mechanism | Torx Screw |
| Made in USA | Yes |
| Materials | 6061-T6 Aluminum, Steel |
| Mount Type | Picatinny |
| No. of Pieces | 2 |
| Patent | US PAT. D771218 | EU PAT. EP2761064-0001 |
| Quick-detachable | No |
| Required Picatinny Space | .87 in (22 mm) |
| Surface Finish | Anodized |
| Torque Specification | 25 in-lbs (T25 Torx, ring cap) | 40 in-lbs (T25 Torx, side plate) |
| Weight | 4.5oz (128 g) |
| Center Height | 1 in (25.4 mm) |
|---|---|
| Inner Diameter | 34 mm |
| Max Fit Obj. Bell Dia | 1.96 in (50 mm) |
| Ring Width | .87 in (22 mm) |
| Saddle Height | .33 in (8.4 mm) |
| Width | 2 in (50.7 mm) |
